Precision Series
Precision Machine Highlights

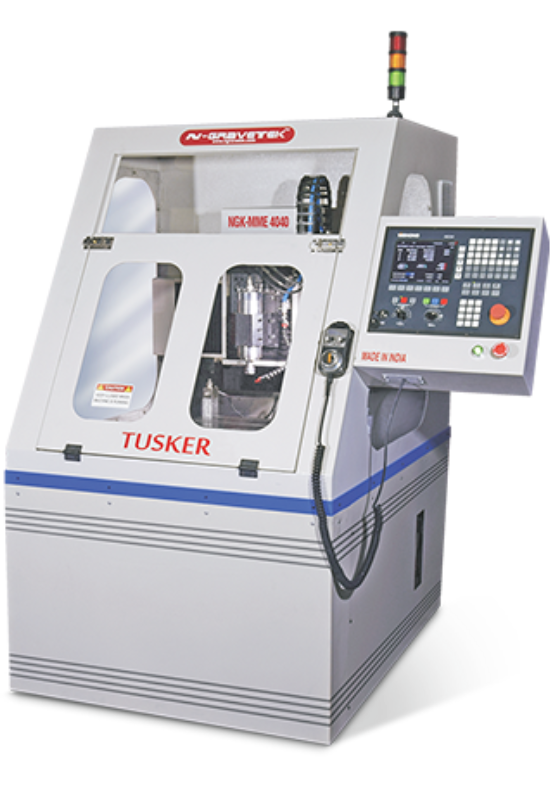

- Time Proven, Sturdy and Versatile Full Digital CNC Precision Micro-Milling / Engraving Machine.

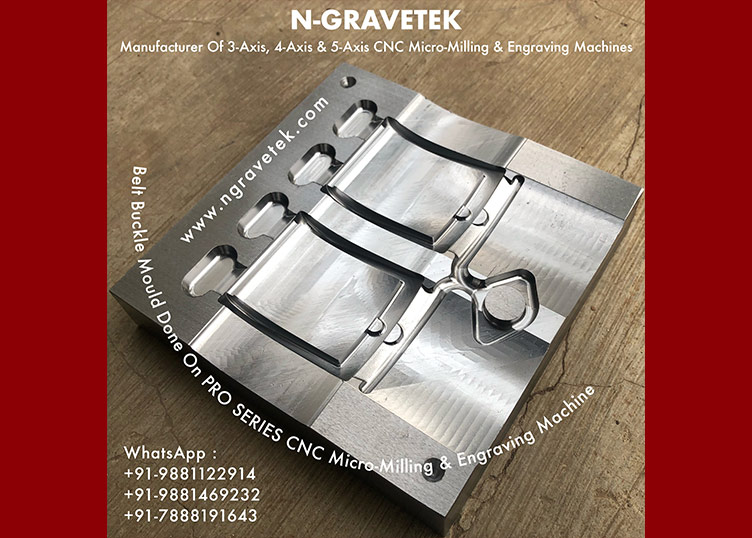

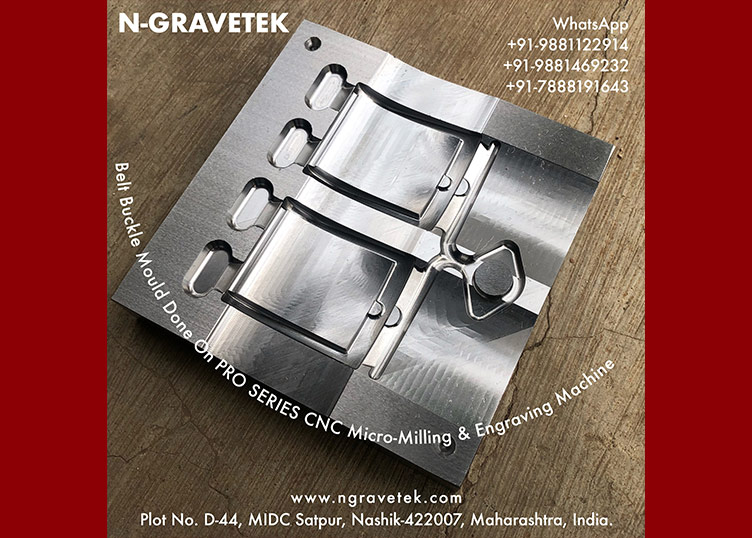

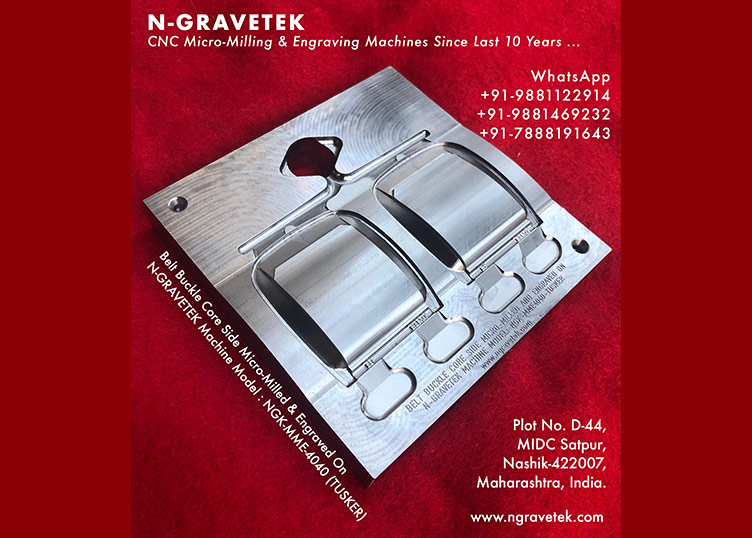

- Specially designed for precise Micro-Milling & Engraving operations required for mould industry.
- Cast iron foundry body with high precision datum planes which gives better surface finish & better tool life.
- High precision pre-laded ground ball screw with LM guide-ways enable higher rapids and better productivity.
- Completely closed loop system with AC servo motor & drive for all 3-axis
- Integrated probrammable multi-axis simultaneous 3-axis controller which uses standard G-code NC file type input.
- Closed loop control sytem enables to set 10 user work origin using standard ISO G 54/55/56 code.
- On power failure, machine resumes from same point where it stopped.
- Machine future ready for 4th / 5th axis for doing Micro-Milling & Engraving operations.
- Brake Motor used for Dynamic Balancing of Z - Axis.
- Program can be copied easily using USB pen Drive of LAN.
- Milling/ Cutting program for simple shpes can be programmed directly in controller without CAD/CAM software.
High Precision Ground Ball-Screw
High Precision LM Guides
Telescopic Guards
Industrial Panel AC
Proximity Sensor
Automatic Oil Lubricating System
Machine Technical Specifications
| Description | NGK-MME 4040 | NGK-MME 6040 |
|---|---|---|
| Working Area – (X) x (Y) x (Z) (mm) | 400 (X) x 400 (Y) x 200 (Z) | 600 (X) x 400 (Y) x 200 (Z) |
| Total Size- Clamping Area in mm | 400 (X) x 475 (Y) | 650 (X) x 475 (Y) |
| T-Slot Size | M10 | |
| T-Slot Centre Distance | 104mm | |
| T-Slot Centre Distance | 104mm | |
| Engraving Speed | 8000 mm/min | |
| Rapid Speed | 15000 mm/min | |
| Spindle Speed | 24000 RPM | |
| Spindle Power | 2.2 KW | 3 KW |
| Maximum Tool Diameter | 12 mm | |
| Guide System | High precision Linear motion Guide | |
| Drive System | High Precision Pre-Loaded Ground Ball Screw | |
| Motor/Drive | Panasonic - 400W | Panasonic - 750W |
| Standalone Controller | Weihong NK260 | |
| Internal Memory | YES | |
| Expandable | YES | |
| USB Connectivity | YES | |
| Machine Self Zero | YES | |
| User Work Zero (G54) | 10 | |
| Auto Spindle On/Off | YES | |
| Auto Coolant On/Off | YES | |
| Break Point Resume (Tool Breakage) | YES | |
| Power Resume Function | YES | |
| NC File Format | ISO G-Code (Standard) | |
| Accuracy | 0.003mm | |
| Repeatability | 0.005mm | |
| Feeding Height | 230 MM (Customisable) | |
| Safe Weight on Table | 150 Kg | 200 Kg |
| Weight of Machine | 1500 Kg | 1800 Kg |
| Floor Space (mm)- (L) x (D) x (H) | 1500 x 1250 x 2000 | 1800 x 1250 x 2000 |
| Operating Tempreture | 5 to 35 Degrees | |
Standard Accessories
| Names | Nos |
|---|---|
| Industrial Spindle Chiller | 1 Nos |
| Industrial Panel AC | 1 Nos |
| Z-Calibrator (Auto Z) | 1 Nos |
| Electronic Lubrication System | 1 Nos |
| Coolant Sytem | 1 Nos |
| Engraving Tool | 5 Nos |
| Clamp Set | 4 Nos |
| Spanner (Required Sizes Only) | 3 Nos |
| Collets (12mm & 6mm) (Single Each) | 2 Nos |
| Allen keys (Required Sizes Only) | 5 Nos |
Optional Accessories
- Higher Capacity Spindle As Per Requirement
- Integrated Controller - LNC/SIEMENS/Mitsubishi
- Rotary Axis / 4th Axis / 5th Axis
- 6" Milling Vice / 3" Precision Grounded Vice
- Tool Grinder (taiwan make) (Training Included @ our Works)
- CAD / CAM Software As Per Requirement
