PreciCUT Machine Highlights

N-Gravetek Manufactures 3-axis, 4-asis & 5-asis CNC Engraving & Milling Machines.

Founded in 2008 in a small rented apartment of 700 sq. ft. in heart of nashik city; we have now grown to a 10000 sq. ft. premises located in Satpur MIDC.

With over 180+ installations all over India, we have wide range of products and services with unmatched industry expertise to enable our customers meet their challenges in 3-axis, 4-asis & 5-asis applications. Our Micro-Milling & Engraving Machines are most suitable for molds which require work with high precision.

A talented and dedicated team is what helps N-Gravetek remain committed to providing the best dpre and post sales service support for our customers.

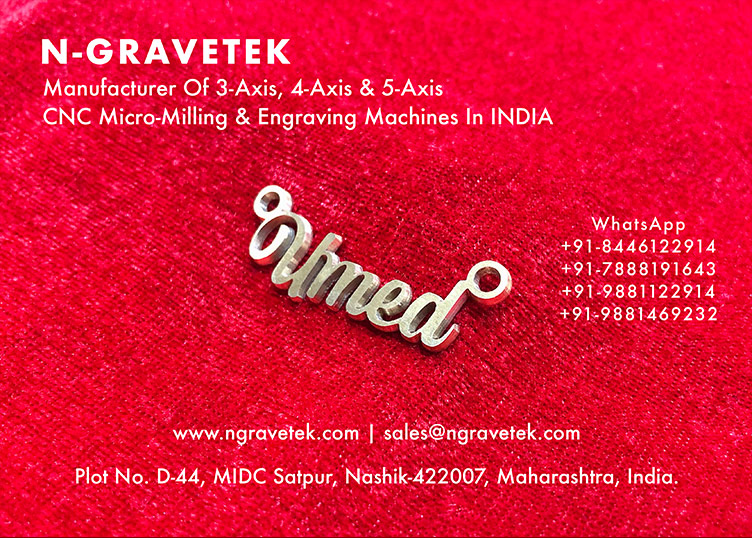

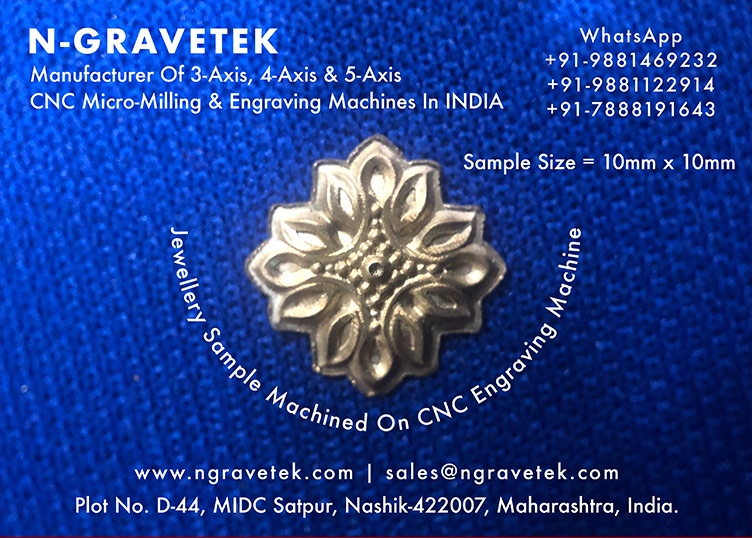

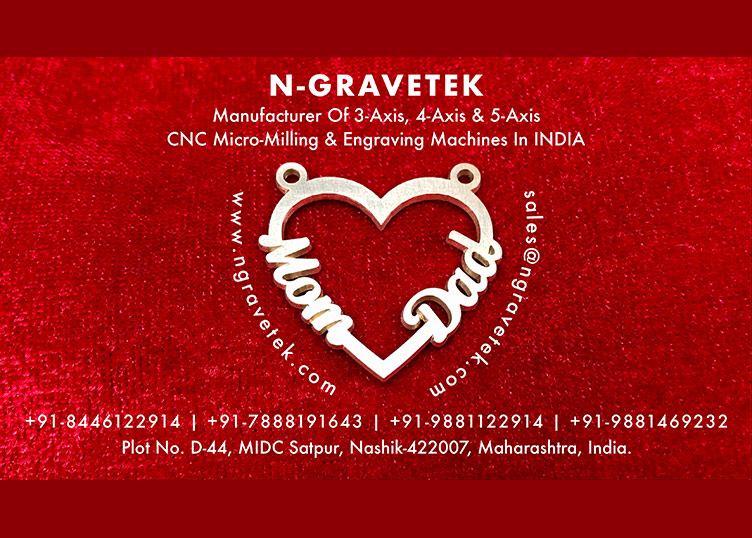

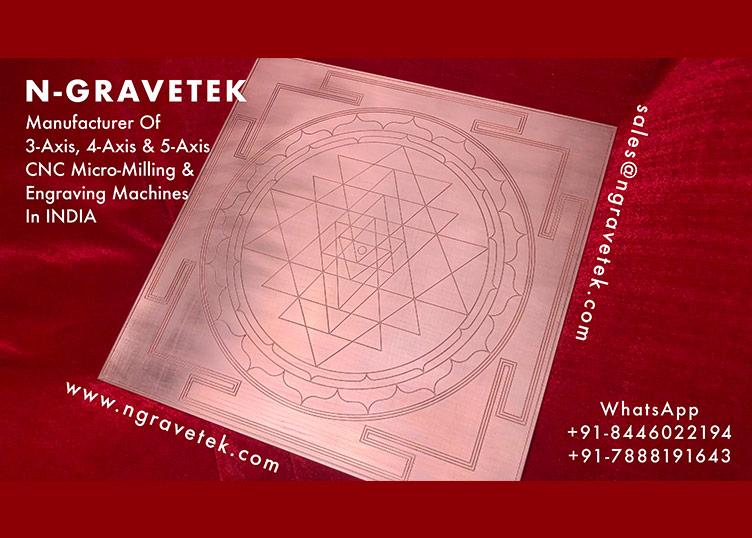

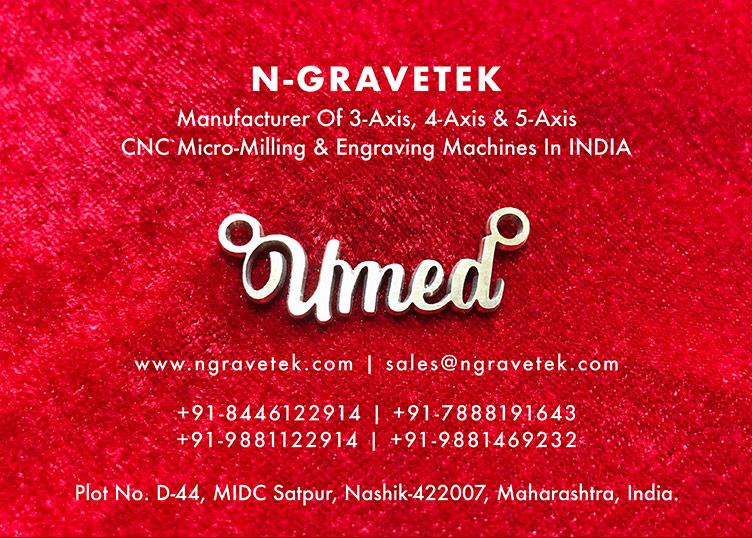

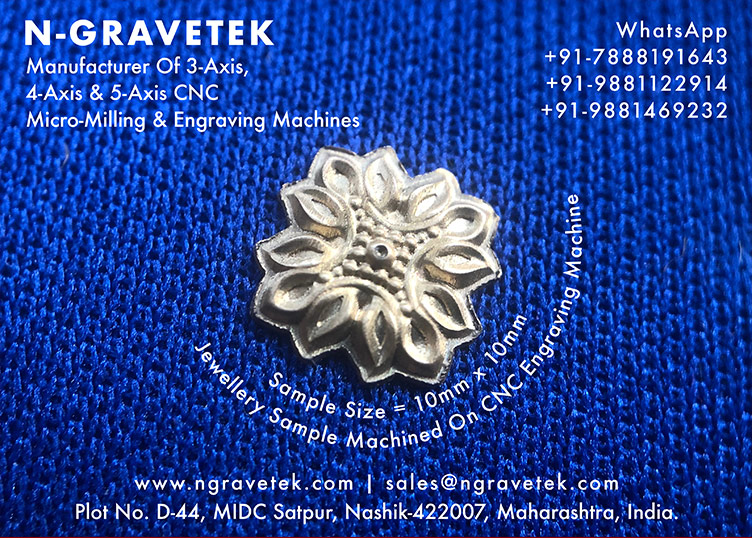

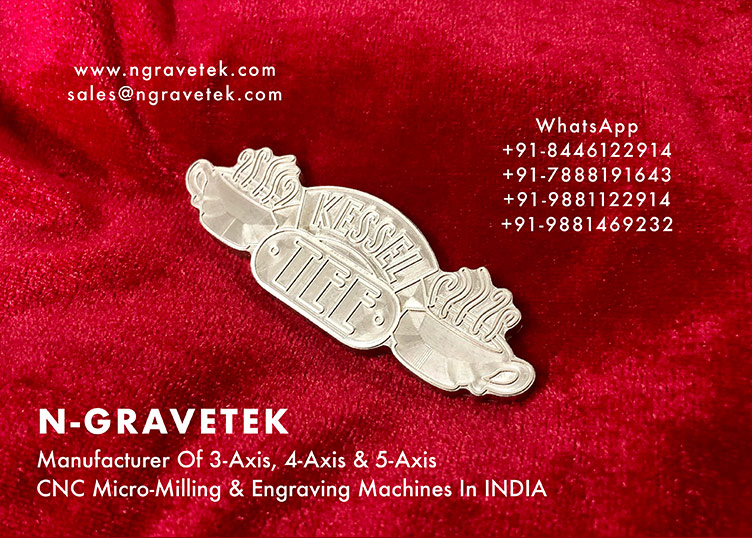

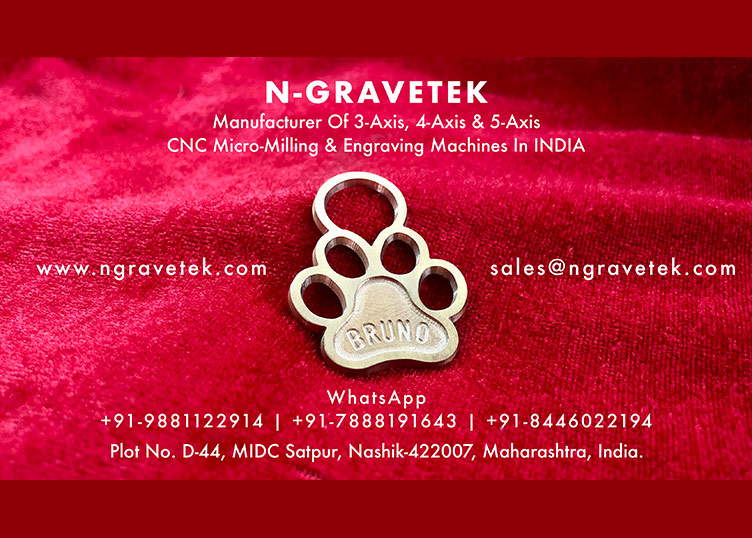

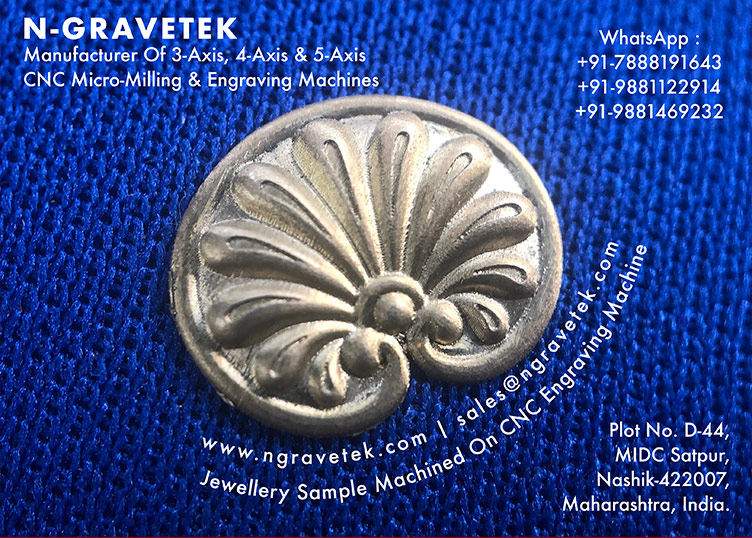

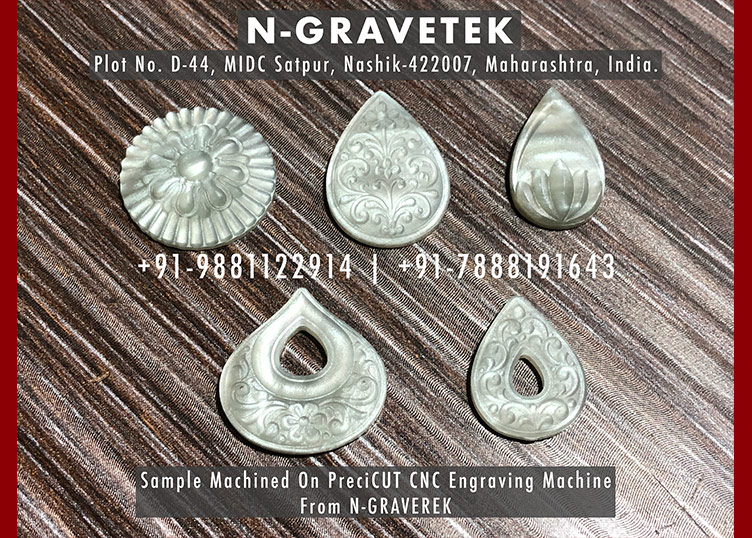

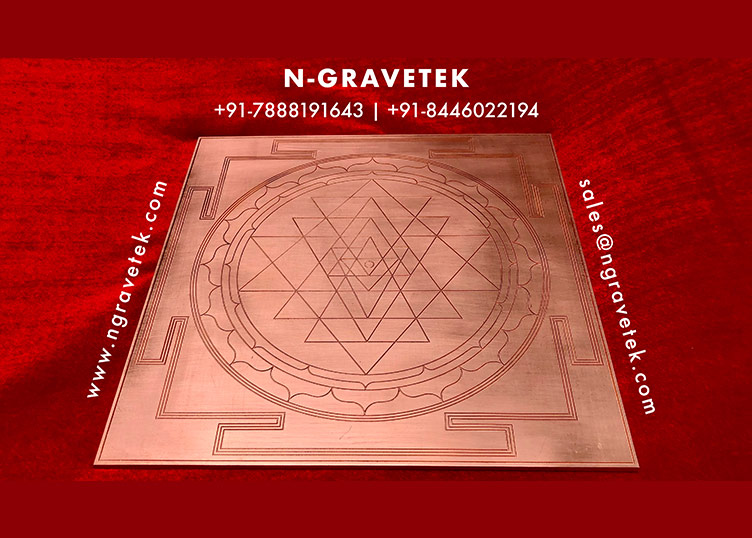

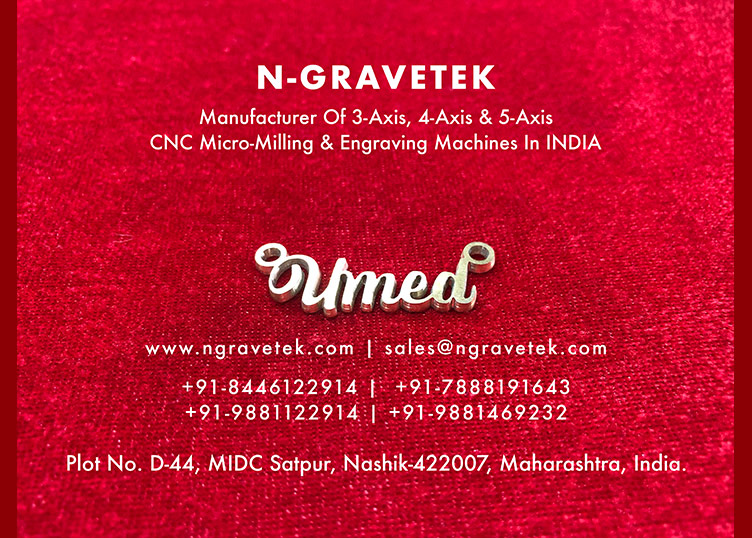

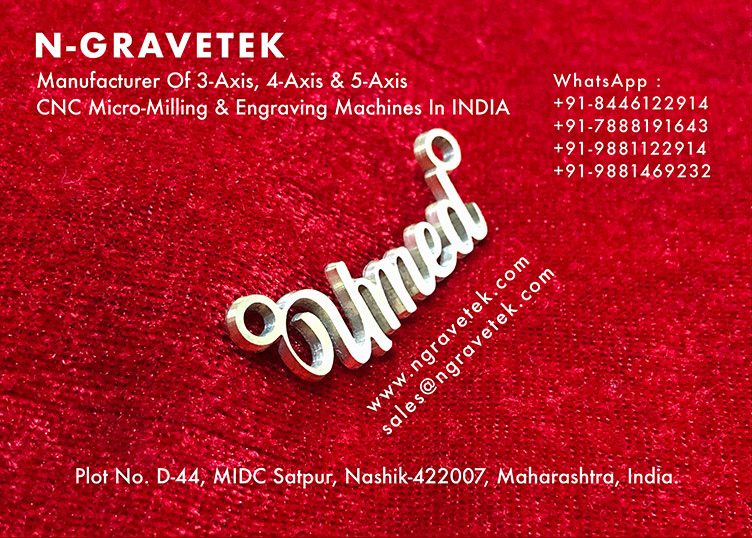

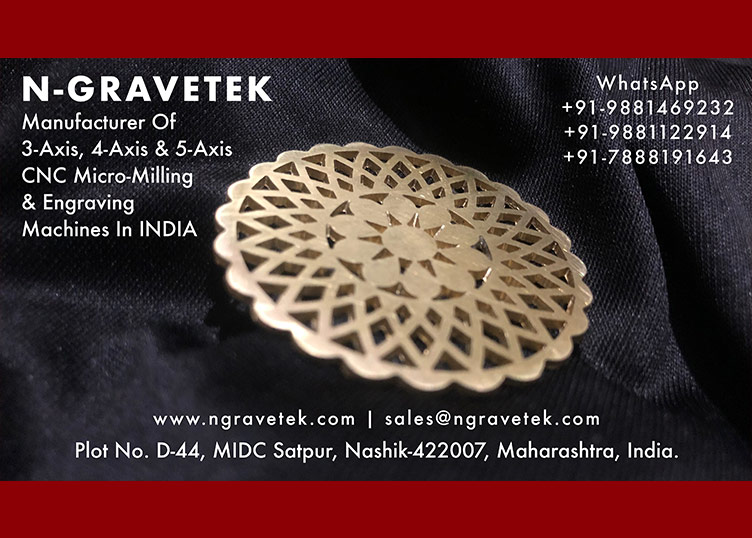

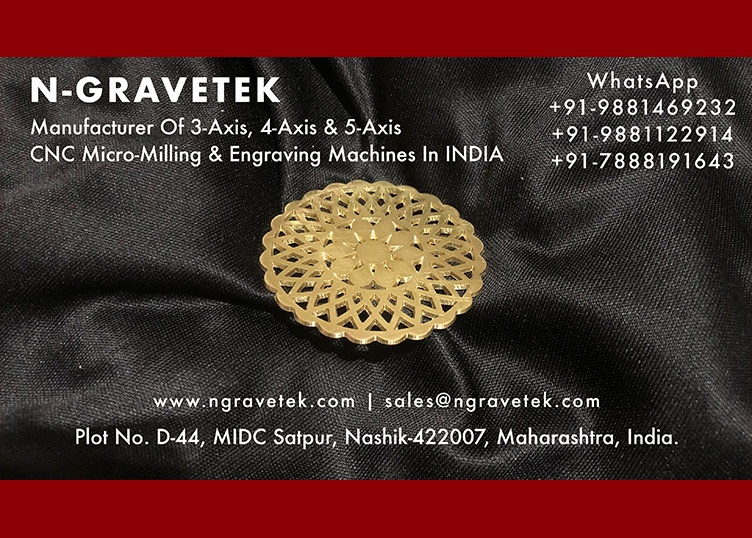

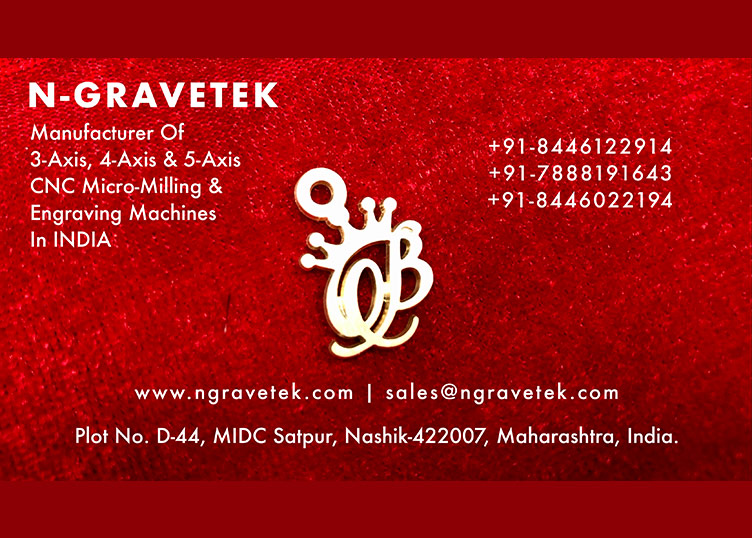

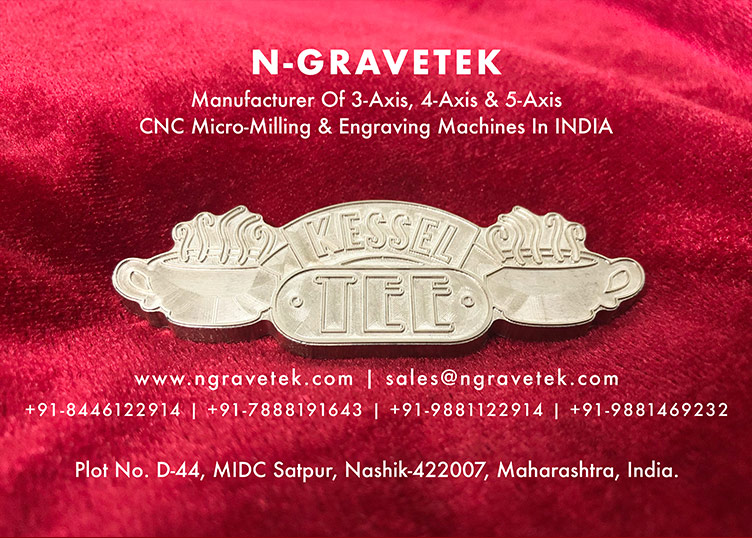

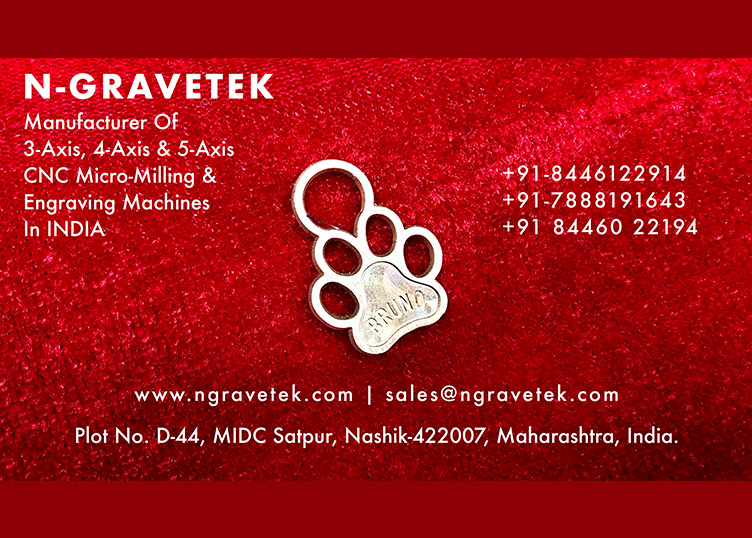

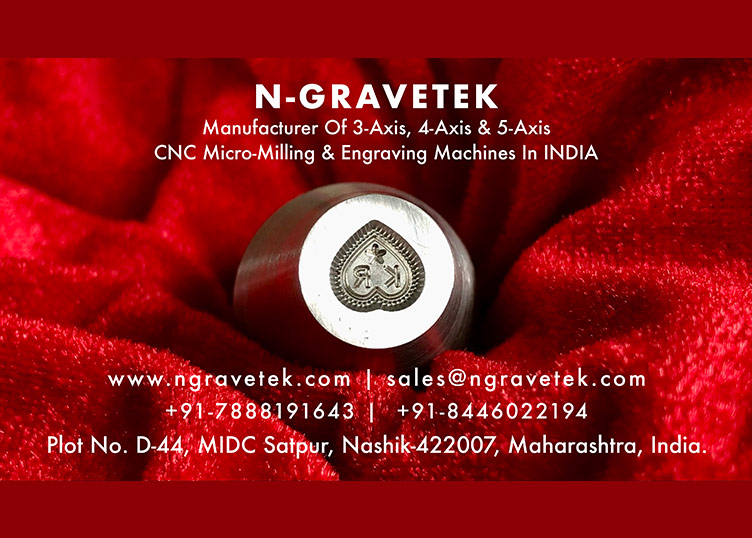

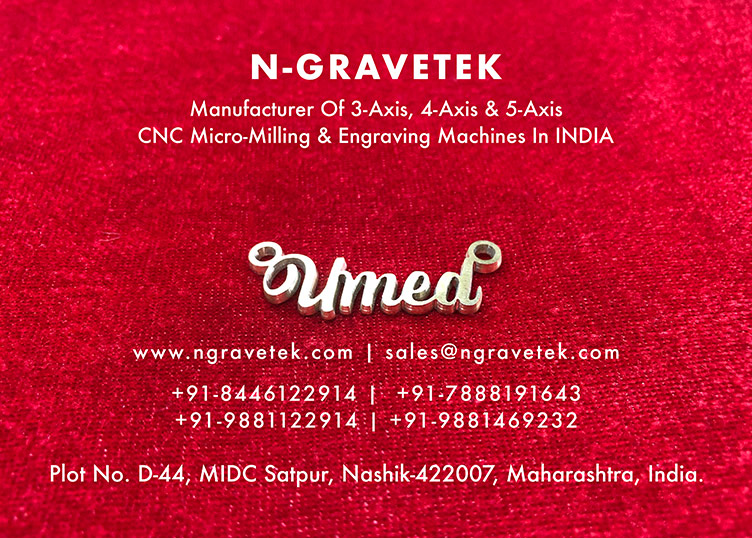

Product Video Technical Specs Sample Images
Download Catalog

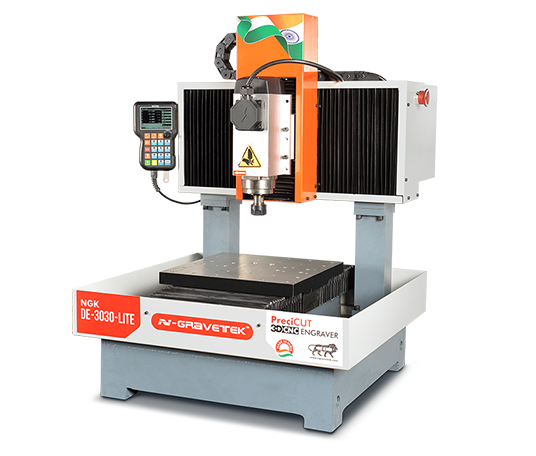

NGK-DE-3030 LITE Machine Technical Specifications

Description NGK-DE-3030 LITE
Working Area – (X) x (Y) x (Z) (mm) 300 (X) X 300 (Y) X 100 (Z)
Total Size- Clamping Area in mm 300 (X) X 300 (Y)
Engraving Speed 2000 mm/min
Rapid Speed 3000 mm/min
Spindle Speed 24000 RPM
Spindle Power 2.2 KW
Maximum Tool Diameter 6 mm (Non-Ferrous Material) 4mm (Ferrous Material)
Guide System Linear Motion Guide
Drive System Ball Screw
Motor/Drive Stepper Motor & Drive
Standalone Controller (DSP) Digital Signal Processor
USB Connectivity YES
Machine Self Zero YES
User Work Zero (G54) 10
Auto Spindle On/Off YES
Tool Break Point Resume YES
Power Resume Function YES
NC File Format ISO G-Code (Standard)
Accuracy 0.025mm
Feeding Height 150 mm (Customisable)
Safe Weight on Table 50 Kg
Weight of Machine 150 Kg
Floor Space (mm)- (L) x (D) x (H) 600 X 815 X 850 mm

Standard Accessories

Names Nos
Engraving Tool 1 Nos
Spanner (Required Sizes Only) 2 Nos
USB Pen Drive 1 Nos
Collet (3mm) 1 Nos

Optional Accessories

  • 2" (Width) x 3" (Opening) Precision Vice
  • Rotary Axis / 4th Axis
  • Suitable Voltage Stabilizer / UPS
  • CAD/CAM Software As Per Requirement
  • Tool Grinder (Taiwan Make) (Training Included @Our Works)
